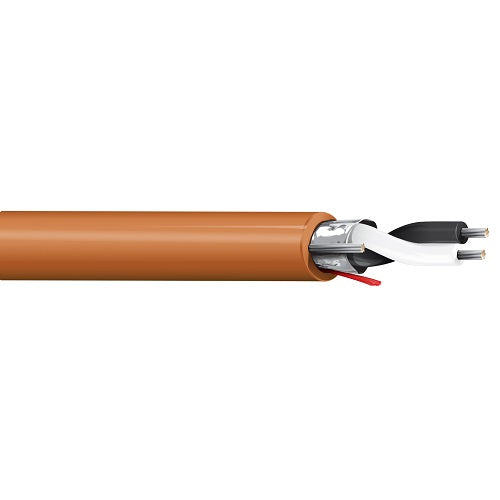

Belden 5540FT 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Thermostat and Control Cable

Description:-

Thermostat and Control Cable, Riser-CMR, 1-22 AWG stranded tinned copper pair with foam polyolefin insulation, Beldfoil shield, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.064 in (1.6 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.172 in
• Overall Cable Diameter (Nominal): 0.172 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Thermostat, Control, Noisy Environment

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 5540FT
