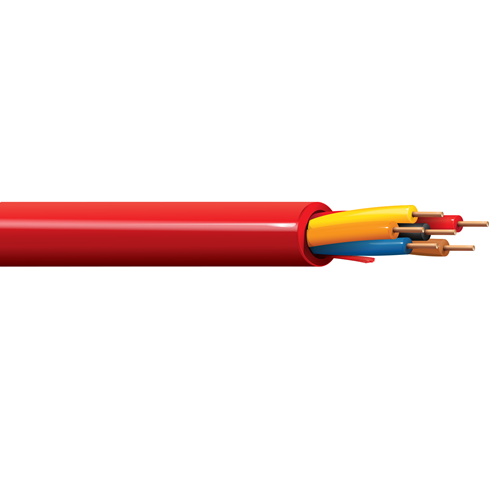

Belden 5524UL 22 AWG 6 Conductor Solid Bare Copper 300V Fire Alarm Cable
Belden 5524UL 22 AWG 6 Conductor Solid Bare Copper 300V Fire Alarm Cable
SKU: SKU: NES5524UL Download PDF
Select a gauge:
- Belden 5524UL 22 AWG 6 Conductor Solid Bare Copper 300V Fire Alarm Cable
- Belden 5524UL 22 AWG 6 Conductor Solid Bare Copper 300V Fire Alarm Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 5524UL 22 AWG 6 Conductor Solid Bare Copper 300V Fire Alarm Cable
Description:
Fire Alarm Cable, Riser-FPLR, 6-22 AWG solid bare copper conductors with PVC insulation, PVC jacket with ripcord.
Insulation:
• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.168 in
Standards:
• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C to +75°C
Applications:
• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification
Specifications:
• Size (AWG): 22
• No. of Conductor: 6
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5524UL
• Size (AWG): 22
• No. of Conductor: 6
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5524UL
