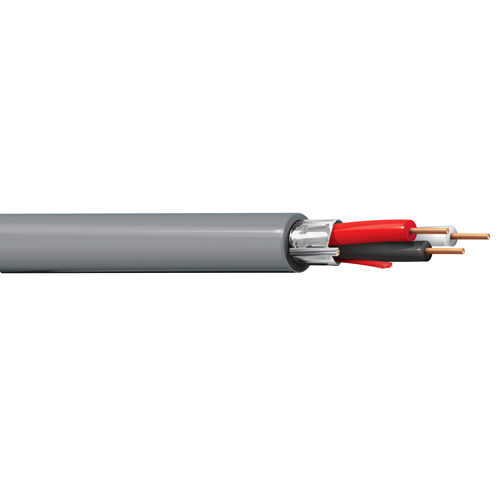

Belden 5521FE 22 AWG 3 Conductor Solid Bare Copper 300V Security and Sound Cable

Belden 5521FE 22 AWG 3 Conductor Solid Bare Copper 300V Security and Sound Cable

SKU: NES5521FE   Download PDF

Select a gauge:
  • Belden 5521FE 22 AWG 3 Conductor Solid Bare Copper 300V Security and Sound Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.34 /FT   Web pricing policy
BEFORE   $0.00 Now $0.34 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 5521FE 22 AWG 3 Conductor Solid Bare Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, 3 Conductor 22 AWG solid bare copper conductors with polyolefin insulation, Beldfoil shield, Riser, PVC jacket with ripcord.

Insulation

• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.040 in (1.0 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.123 in
• Overall Cable Diameter (Nominal): 0.119 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 22
• No. of Conductor: 3
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5521FE
