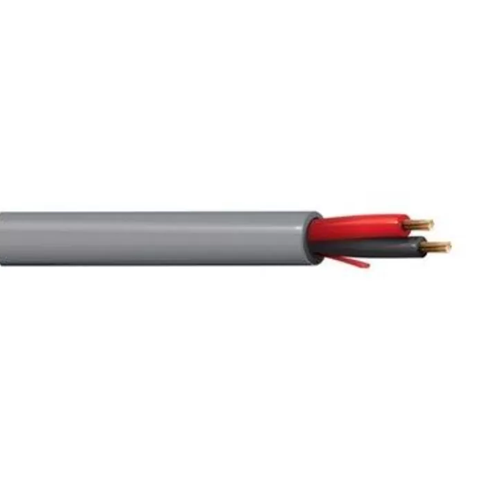

Belden 5520UE 22 AWG 2 Conductor Solid Bare Copper Security and Sound Cable

Description:

Security and Commercial Audio Cable, 2 Conductor 22 AWG solid bare copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.

Insulation:

• Element: Conductor(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.040 in (1.0 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.114 in
• Overall Cable Diameter (Nominal): 0.114 in

Applications:

• Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5520UE
