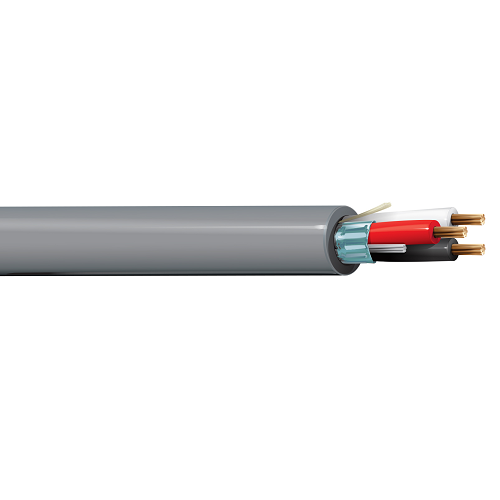

Belden 5501GE 22 AWG 1 Pair 2 Conductor Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Riser-CMR, 1-22 AWG stranded bare copper pair with PVC insulation and Beldfoil shield, 1-22 AWG stranded bare copper conductors with insulation, overall PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.01 in

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG TC - Tinned Copper
• Material Trade Name: Beldfoil

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.171 in
• Nominal Wall Thickness: 0.015 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:-

• Size (AWG): 22
• No. of Pair: 1
• Conductor Material: BC - Bare Copper

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5501GE
