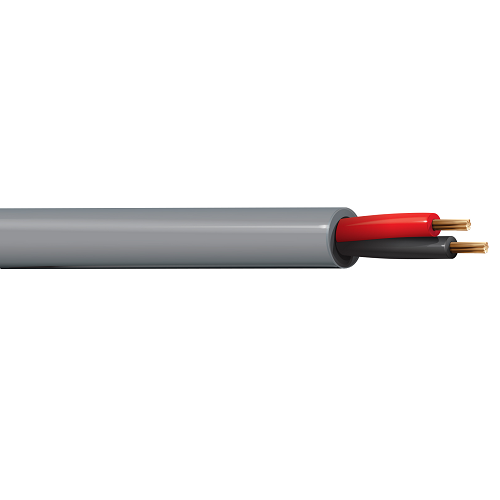

Belden 5500UG 22 AWG 2 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CM, 2-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.114 in
• Overall Cable Diameter (Nominal): 0.114 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Alarm, Intercom/PA, Single Line Telephone

Specifications:-

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5500UG
