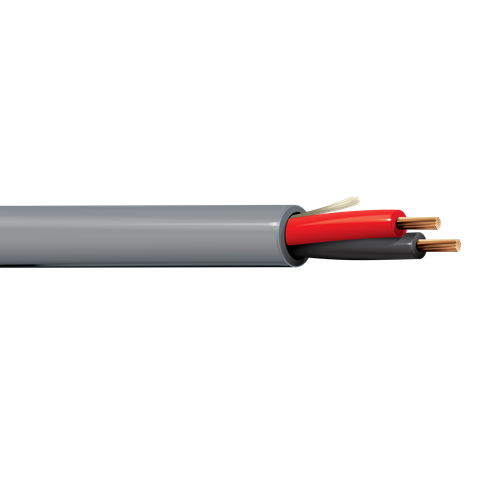

Belden 5500UE 22 AWG 2 Conductor 7x30 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Insulation

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.123 in (3.12 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
• Part Number: 5500UE
