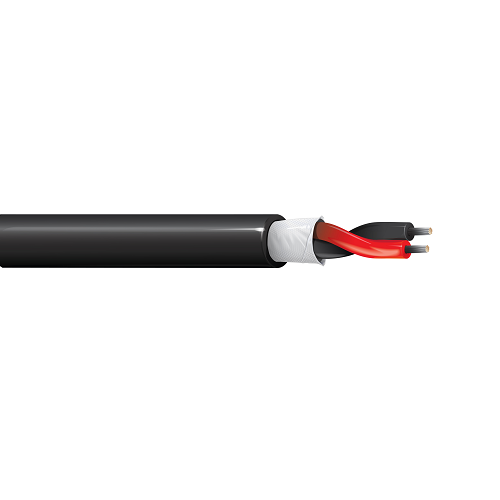

Belden 5500U1 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CM, 2-22 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.185 in
• Overall Cable Diameter (Nominal): 0.185 in
• Waterblocking Tape

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -30°C To +105°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 5500U1
