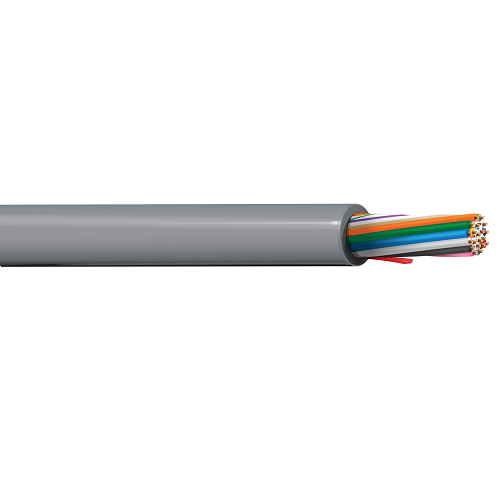

Belden 540BUE 20 AWG 20 Conductor 7x28 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Riser-CMR, 20-20 AWG stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.347 in
• Overall Cable Diameter (Nominal): 0.347 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:-

• Size (AWG): 20
• No. of Conductor: 20
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 540BUE
