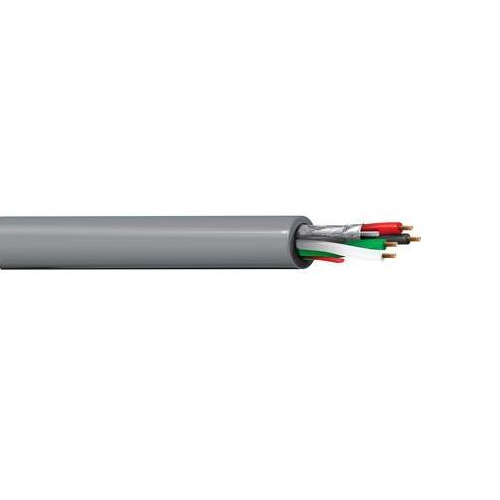

Belden 5402GE 20 AWG 2 Conductor 7x28 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Riser-CMR, 1-20 AWG stranded bare copper pair with PVC insulation and Beldfoil shield, 2-20 AWG stranded bare copper conductors with insulation, overall PVC jacket with ripcord

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Wall Thickness: 0.01 in

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.2 in
• Nominal Wall Thickness: 0.015 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:-

• Size (AWG): 20
• No. of Conductor: 2
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 5402GE
