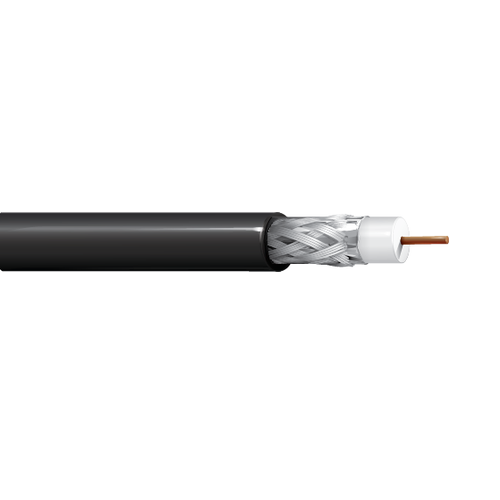

Belden 5399B5 18 AWG 1 Conductor Solid Bare Copper 300V Surveillance Coax Cable

Description:-

Surveillance, CATV and MATV Cable, RG6, Rated-CM and CL2,18 AWG solid bare copper, foam polyolefin core, Duobond + 60% aluminum braid, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.180 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

• Tape is bonded to a dielectric

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.270 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Applications:-

• CATV, MATV, Schlage Systems

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nominal Diameter: 0.040 in
• Conductor Material: BC - Bare Copper
• Part Number: 5399B5
