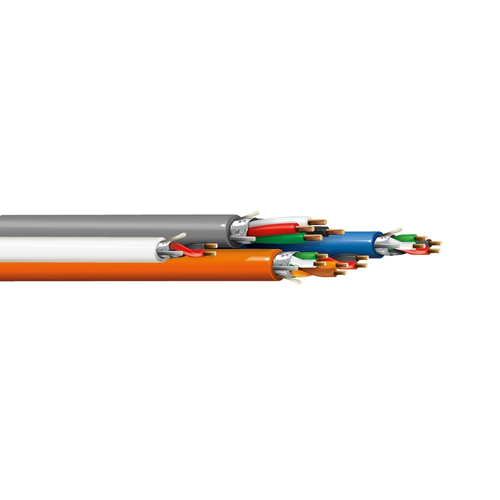

Belden 538AFS 18 AWG 7x26 Stranding 16 AWG 19x29 Stranding Bare Copper 300V Access Control Cable

Description:

Access Control Cable, Riser-CMR, 3-18 AWG pairs, 4-16 AWG conductors, 4-18 AWG conductors, 2-18 AWG conductors, All conductors stranded bare copper with polypropylene insulation, Each cable has overall Beldfoil shield and PVC jacket, Banana Peel No overall jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm), 0.062 in (1.6 mm)
• Nom. Insulation Diameter: 0.008 in (0.20 mm), 0.073 in (1.9 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.272 in (6.91 mm), 0.162 in (4.11 mm), 0.220 in (5.59 mm)

Outer Jacket:

• Nom. Diameter: 0.516 in (13.1 mm)
• Outer Jacket1 Table Notes: Banana Peel
• Overall Cable Diameter (Nominal): 0.516 in (13.1 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: 0°C to +75°C

Applications:

• Access Control, Security System, Power Limited Controls

Specifications:

Card Reader
• Size (AWG): 18
• No. of Pair: 3
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Door Contact
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

REX/Spare
• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Lock Power
• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 538AFS
