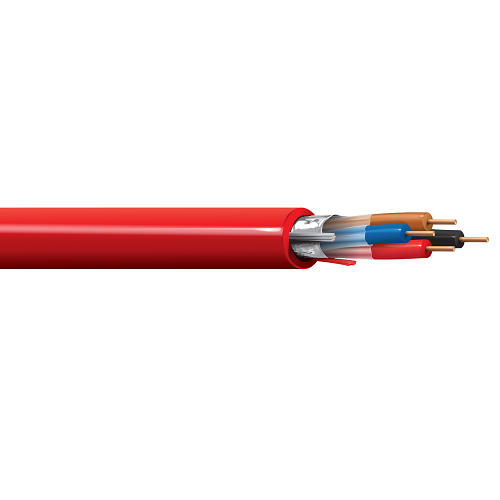

Belden 5322FN 18 AWG 4 Conductor Solid Bare Copper 150V Fire Alarm Cable

Description:-

Fire Alarm Cable, Rated-NPLF, 4-18 AWG solid bare copper conductors with PVC/nylon insulation, overall Beldfoil shield, PVC jacket with ripcord.

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.287 in

Standards:-

• UL Voltage Rating: 150 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Fire Alarm, Non-Power Limited, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Specifications:-

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5322FN
