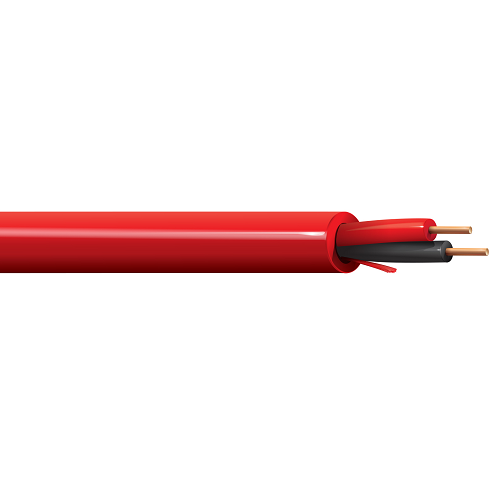

Belden 5320UV 18 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Riser-FPL, 2-18 AWG solid bare copper conductors with polypropylene insulation, PVC jacket with ripcord - Low Capacitance.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.071 in (1.8 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.202

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 100 Ohms
• Operating Temperature Range: -5°C to +75°C

Applications:-

• Fire Alarm, SLC Loops, Digital Audio Loops, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5320UV
