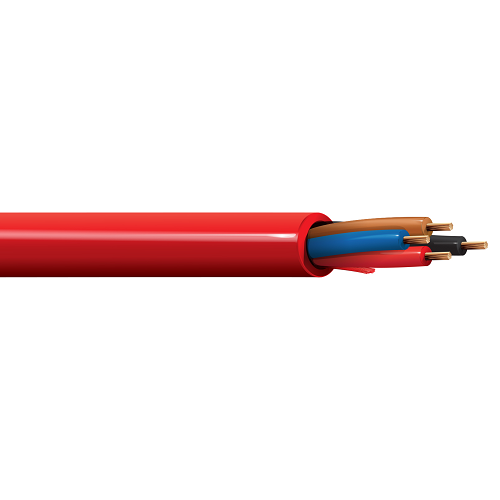

Belden 5302UL 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Riser-FPLR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.184 in
• Overall Cable Diameter (Nominal): 0.184 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5302UL
