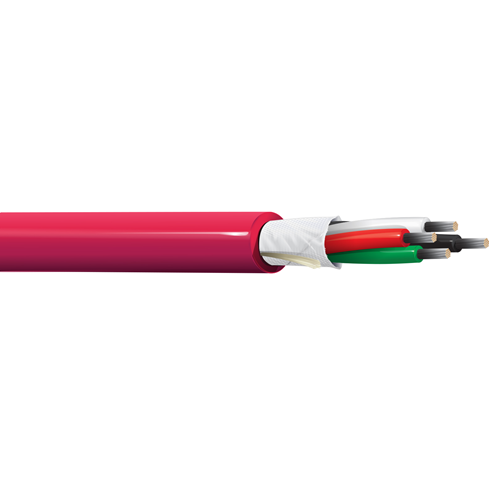

Belden 5302U1 18 AWG 4 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.080 in (2.0 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.309 in (7.85 mm)
• Overall Cable Diameter (Nominal): 0.309 in (7.85 mm)

Standards:

• Operating Temperature: -20°C to +90°C
• Voltage Rating: 300 V (CMG, FPL, PLTC-ER)

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5302U1
