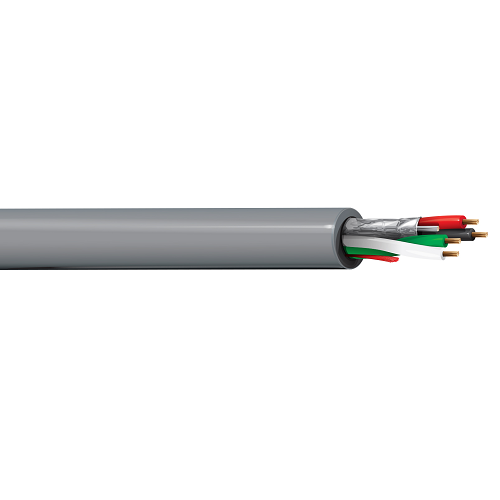

Belden 5302GE 18 AWG 1 Pair 2 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Riser-CMR, 1-18 AWG stranded bare copper pair with PVC insulation and Beldfoil shield, 2-18 AWG stranded bare copper conductors with insulation, overall PVC jacket with ripcord

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.245 in
• Overall Cable Diameter (Nominal): 0.245 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Specifications:-

Element: Pair(s)
• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper

Element: Conductor(s)
• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5302GE
