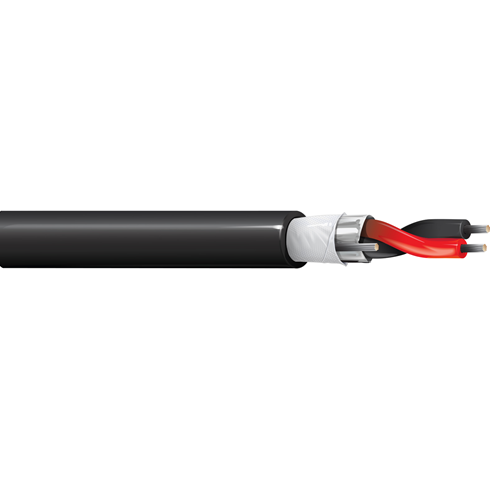

Belden 5300F1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CM, 2-18 AWG stranded tinned copper conductors with PVC insulation, water-blocking tape, Beldfoil shield, and PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.222 in (5.64 mm)
• Overall Cable Diameter (Nominal): 0.222 in (5.64 mm)

Standards:

• Voltage Rating: 300 V (CM)
• Operating Temperature: -20°C to +105°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5300F1
