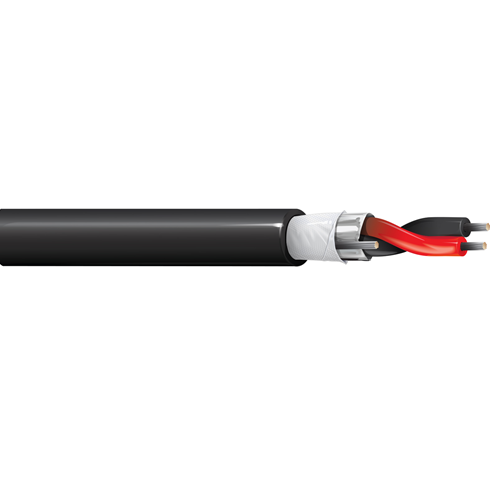

Belden 5300U1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Belden 5300U1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

SKU: NES5300U1   Download PDF

Select a gauge:
  • Belden 5300U1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.33 /FT   Web pricing policy
BEFORE   $0.00 Now $0.33 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 5300U1 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CL3, 2-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.206 in (5.23 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +105°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5300U1
