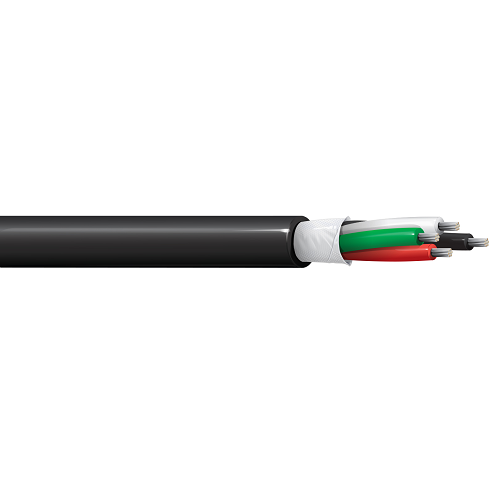

Belden 5202U1 16 AWG 4 Conductor 7x24 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, CMG, 4-16 AWG stranded tinned copper conductors with PVC, Waterblocking tape, and PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.09 in (2.3 mm)
• Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.337 in (8.56 mm)
• Separator: Waterblocking Tape

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 16
• No. of Conductor: 4
• Stranding: 7x24
• Conductor Material: TC - Tinned Copper
• Part Number: 5202U1
