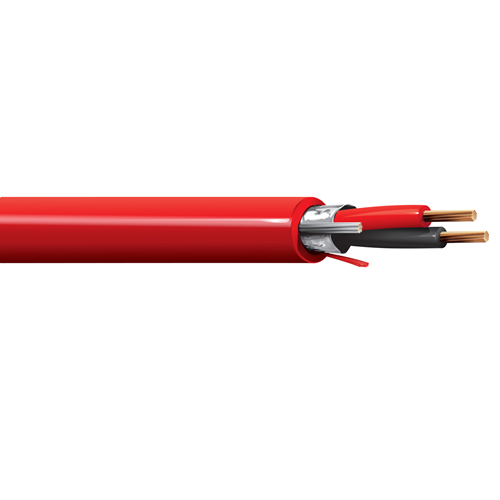

Belden 5200FL 16 AWG 2 Conductor 19x29 Stranding Bare Copper 300V Fire Alarm Cable

Description:

Fire Alarm Cable, Riser-FPLR, 2-16 AWG stranded bare copper conductors with polyolefin insulation, overall Beldfoil shield, PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC- Tinned Copper
• Overall Beldfoil shield (aluminum/polyester bi-laminate foil) with a drain wire to protect against noisy environments.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.184 in
• Overall Cable Diameter (Nominal): 0.184 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 19x29
• Conductor Material: BC - Bare Copper
• Part Number: 5200FL
