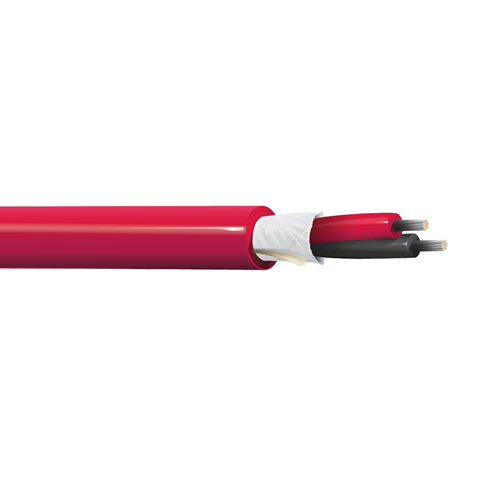

Belden 5140U1 14 AWG 2 Conductor 19x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Rated-CL3-FPL-PLTC, 1-14 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.120 in (3.05 mm)
• Waterblocking: Waterblock Tape

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.356 in (9.04 mm)
• Overall Cable Diameter (Nominal): 0.356 in (9.04 mm)

Standards:

• Operating Temperature: -20°C to +90°C
• Voltage Rating: 300 V (CL3, FPL, PLTC-ER)

Applications:

• Security System, Intercom/PA, Audio/Speaker, Fire Alarm (Red Jkt), Power-Limited Controls, Wet Location, Below-Grade Duct

Specifications:

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5140U1
