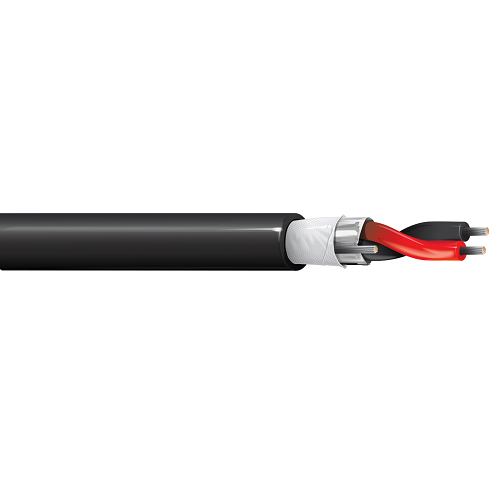

Belden 5140F1 14 AWG 2 Conductor 19x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CL3-FPL-PLTC, 1-14 AWG stranded tinned copper pair with PVC insulation, Beldfoil shield, Waterblocking tape, PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Insulation Diameter: 0.104 in (2.64 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 16 AWG (19x29) TC - Tinned Copper
• Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.326 in (8.28 mm)
• Overall Cable Diameter (Nominal): 0.326 in (8.28 mm)

Standards:-

• UL Voltage Rating: 300 V (CL3, FPL, PLTC-ER)
• Operating Temperature Range: -20°C to +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Fire Alarm (Red Jkt), Power-Limited Controls, Noisy and Wet Location, Below-Grade Duct

Specifications:-

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5140F1
