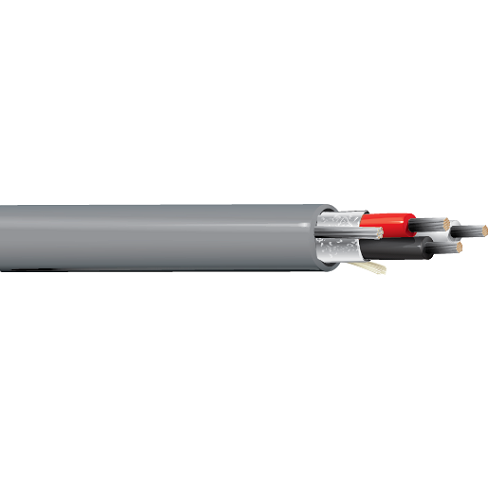

Belden 5101FH 14 AWG 3 Conductor 19x27 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 3 Conductor 14 AWG stranded (19x27) tinned copper conductors with polyolefin insulation, Beldfoil shield, Riser, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nominal Wall Thickness: 0.011 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.017 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Intercom/PA Systems, Sound/Audio Systems

Specifications:-

• Size (AWG): 14
• No. of Conductors: 3
• Stranding: 19x27
• Conductor Material: TC - Tinned Copper
• Part Number: 5101FH
