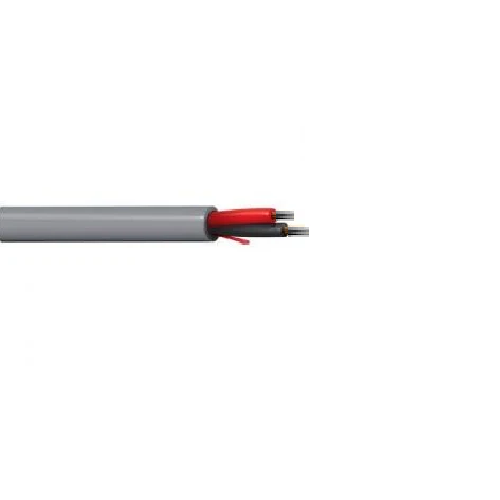

Belden 5100U1 14 AWG 2 Conductor 19x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, 2 Conductor 14 AWG stranded (19x27) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Insulation Diameter: 0.104 in (2.64 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.29 in
• Overall Cable Diameter (Nominal): 0.29 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -30°C To +105°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5100U1
