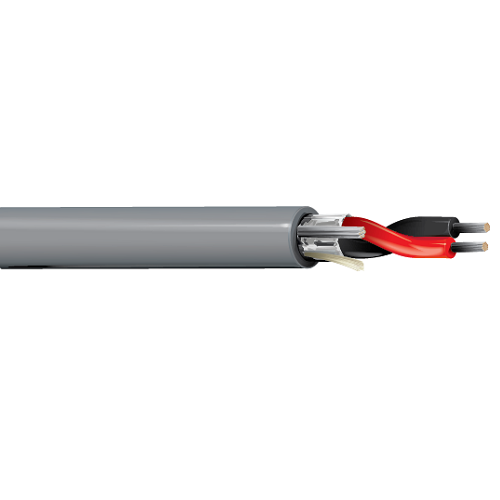

Belden 5100FH 14 AWG 2 Conductor 19x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, Riser-CL3R-FPLR, 2-14 AWG stranded tinned copper conductors with polyolefin insulation, Beldfoil shield and PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.098 in (2.5 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.234 in
• Overall Cable Diameter (Nominal): 0.234 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems

Specifications:-

• Size (AWG): 14
• No. of Conductors: 2
• Stranding: 19x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5100FH
