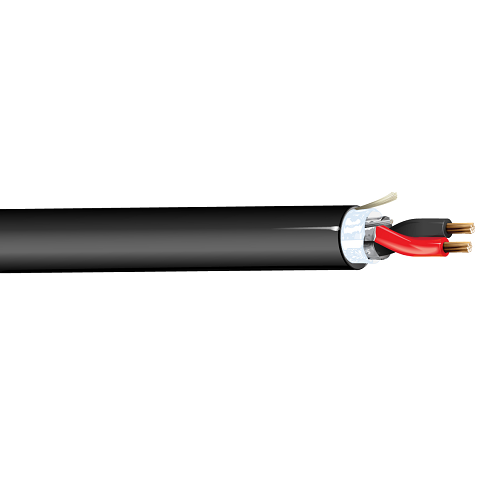

Belden 5100F2 14 AWG 2 Conductor 19x27 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CL3, 2-14 AWG PVC-Nylon insulation, 100% Al. Foil Shield, Waterblocking tape, PVC jacket with ripcord

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
• Waterblocking: Waterblock Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.350 in (8.89 mm)
• Overall Cable Diameter (Nominal): 0.350 in (8.89 mm)
• Outer Jacket 1 Table Notes: Waterblocking Tape

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +90°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Direct Burial

Specifications:-

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x27
• Conductor Material: BC - Bare Copper
• Part Number: 5100F2
