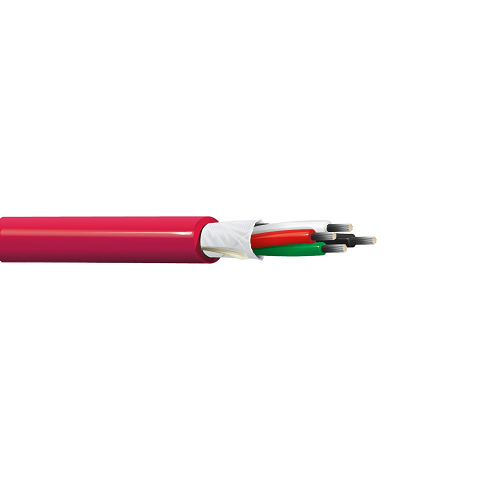

Belden 5002U1 12 AWG 4 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 4 Conductor 12 AWG stranded (19x25) tinned copper conductors with PVC insulation, water-blocking tape, CL3, PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Insulation Diameter: 0.119 in (3.02 mm)
• Outer Shield Waterblocking Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.029 in (0.74 mm)
• Nom. Diameter: 0.377 in (9.58 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +105°C

Applications:-

• Intercom/PA Systems, Sound/Audio Systems

Specifications:-

• Size (AWG): 12
• No. of Conductors: 4
• Stranding: 19x25
• Conductor Material: TC - Tinned Copper
• Part Number: 5002U1
