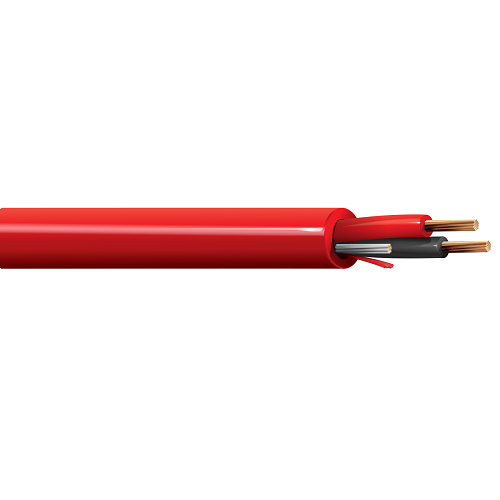

Belden 5000UL 12 AWG 2 Conductor 19x25 Stranding Bare Copper 300V Fire Alarm Cable

Description:-

Fire Alarm Cable, Riser-FPLR, 2-12 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.113 in (2.87 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.26 in
• Overall Cable Diameter (Nominal): 0.26 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 5000UL
