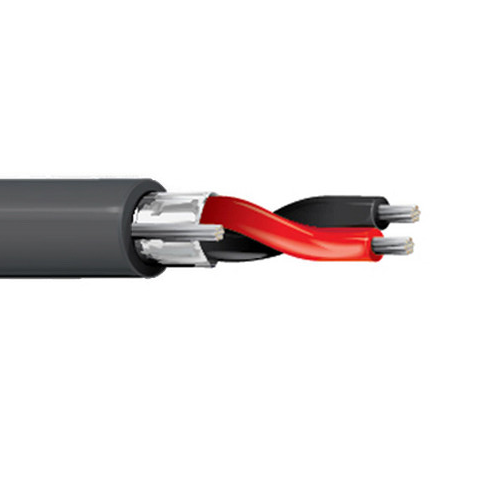

Belden 5000U1 12 AWG 2 Conductor 19x25 Stranding 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 12 AWG stranded (19x25) tinned copper conductors with PVC insulation, Waterblocking tape, CL3, PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Insulation Diameter: 0.119 in (3.02 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.320 in
• Overall Cable Diameter (Nominal): 0.320 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -30°C to 105°C

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: TC - Tinned Copper
• Part Number: 5000U1
