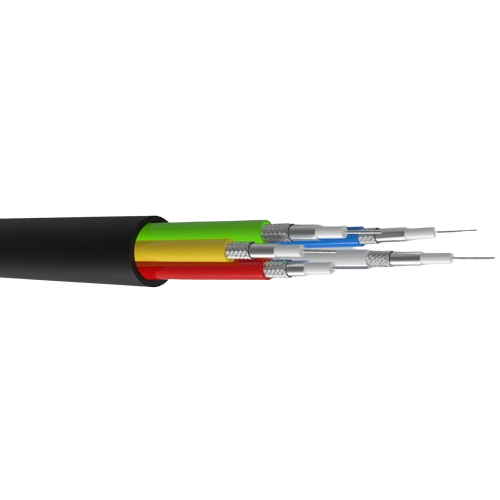

Belden 4855RX5 23 AWG 5 Conductor Solid Silvered Copper 300V Precision Video Coax Cable

Description:-

12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 5 Coax 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage), PVC inner and outer jackets

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.102 in (2.59 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.159 in (4.04 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.539 in (13.7 mm)

Standards:-

• UL Voltage Rating: 300 V RMS (CMR)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C to +75°C

Applications:-

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Specifications:-

• Size (AWG): 23
• No. of Conductor: 5
• Stranding: Solid
• RG Type: Mini 59
• Nom. Diameter: 0.023 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4855RX5
