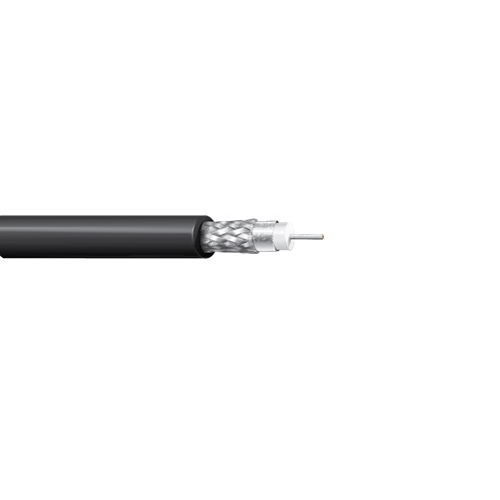

Belden 4855P 23 AWG 1 Conductor Solid Silvered Copper 300V Precision Video Coax Cable

Description:-

12 GHz, 4K UHD Precision Video Coax, 75 Ohm Mini RG-59 Type 23 AWG solid silver plated copper conductor, foam FEP core, Duofoil bonded to core+95% tinned copper braid, CMP, Flamarrest jacket

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.102 in (2.59 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.159 in (4.04 mm)
• Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +75°C

Applications:-

• SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Specifications:-

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• RG Type: Mini 59
• Nom. Diameter: 0.023 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4855P
