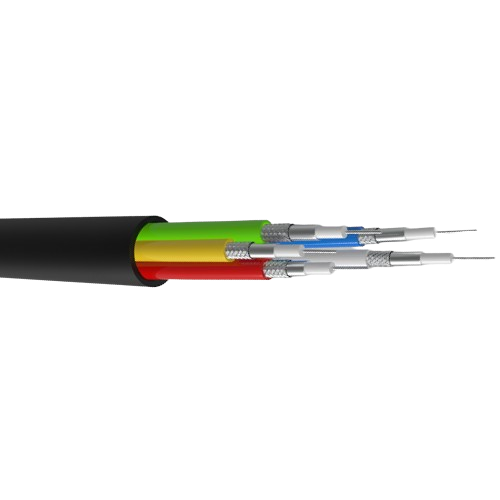

Belden 4794RX5 16 AWG 5 Conductor Solid Silvered Copper 300V Precision Video Coax Cable

Description:-

12 GHz, 4K UHD Precision Video Cable, RG-7 Series, 75 Ohm 5 Coax 16 AWG solid 0.051" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil bonded to the core + tinned copper braid shield (95% coverage) plus Beldfoil with shorting fold, PVC inner and outer jackets

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.225 in (5.72 mm)
• Gas Injected

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.320 in (8.13 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 1.068 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +75°C

Applications:-

• SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p

Specifications:-

• Size (AWG): 16
• No. of Conductor: 5
• Stranding: Solid
• Series Type: 7
• Nom. Diameter: 0.051 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4794RX5
