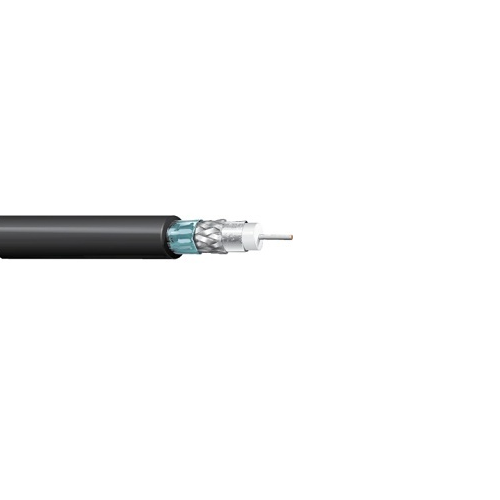

Belden 4794P 16 AWG 1 Conductor Solid Silvered Copper 300V SDI Coax Cable

Description:-

75 Ohm SDI Coax, Series 7, 16 AWG Solid Silvered Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVDF Jacket, CMP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.225 in (5.72 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Drainwire Type: Duofoil

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.297 in

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Specifications:-

• Size (AWG): 16
• No. of Conductor: 1
• Stranding: Solid
• Series Type: 7
• Nom. Diameter: 0.051 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4794P
