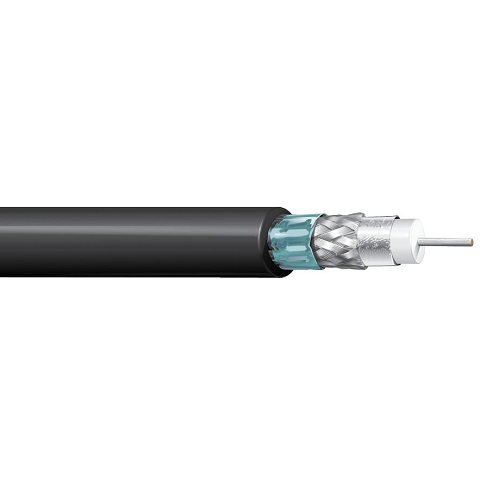

Belden 4731R 14 AWG 1 Conductor Solid Silvered Copper 300V SDI Coax Cable

Description:-

75 Ohm SDI Coax, RG-11, 14 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid + Foil Shield, PVC Jacket, CMR.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.280 in (7.11 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.400 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR, CMG)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4731R
