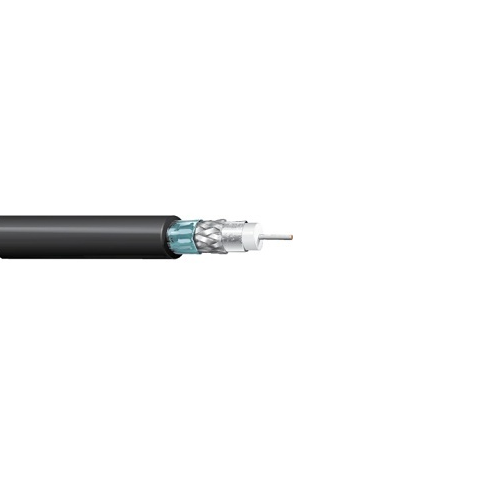

Belden 4731P 14 AWG 1 Conductor Solid Silvered Copper 300V Precision Video Coax Cable

Description:-

12 GHz, 4K UHD Precision Video Coax, 75 Ohm RG11 Type 14 AWG solid silver plated copper conductor, foam FEP core, Duofoil bonded to core+95% tinned copper braid+Duofoil, CMP, PVDF jacket

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.274 in (6.96 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.348 in (8.84 mm)
• Overall Cable Diameter (Nominal): 0.348 in (8.84 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +125°C

Applications:-

• SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4731P
