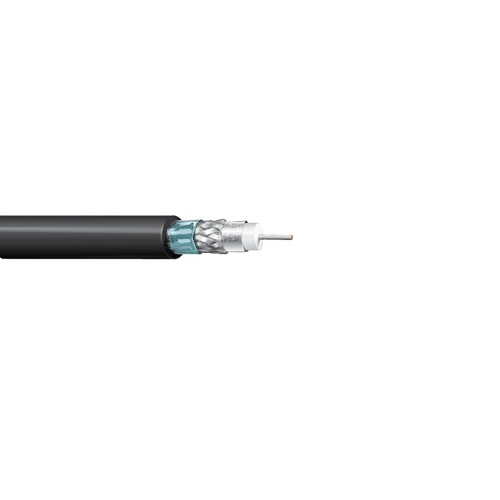

Belden 4731ANH 14 AWG 1 Conductor Solid Silvered Copper 300V Precision Video Coax Cable

Description:-

12 GHz Coax, 4K UHD Precision Video Cable, RG-11U Coax, 14 AWG solid 0.064" silver-plated copper conductor, gas-injected foam HDPE insulation, Duofoil bonded to core + tinned copper braid shield (95% coverage) + bonded to jacket, LSZH jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.280 in (7.11 mm)
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil

Outer Jacket:-

• Material: PO - Polyolefin
• Nom. Diameter: 0.400 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.066 in
• RG Type: 11
• Conductor Material: SC - Silvered Copper
• Part Number: 4731ANH
