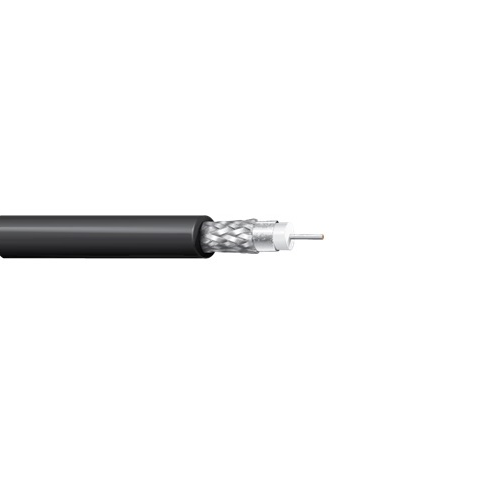

Belden 4694F 18 AWG 1 Conductor Solid Silvered Copper 300V Precision Flexible Video Coax Cable

Description:-

12 GHz Coax, 4K UHD Precision Flexible Video Cable, RG-6/U Type, 75 Ohm, 18 AWG solid 0.040" silver plated copper conductor, gas-injected foam HDPE insulation, dual tinned copper braid shield (95% coverage each), CM, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.276 in (7.01 mm)
• Overall Cable Diameter (Nominal): 0.276 in (7.01 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nom. Diameter: 0.040 in
• Conductor Material: SC - Silvered Copper
• Part Number: 4694F
