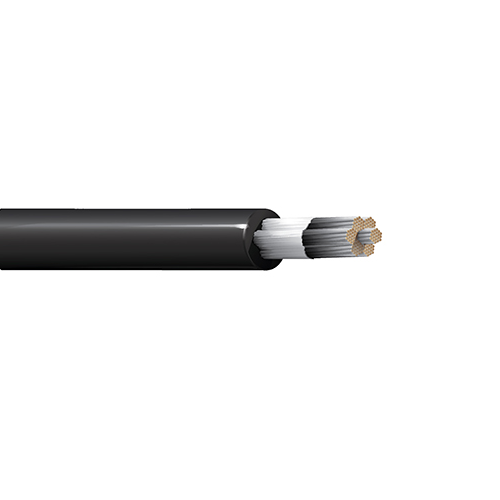

Belden 37140 4/0 AWG 1 Conductor 805x26 Stranding Tinned Copper 600V Rubber Lead Wire

Description:-

Rubber Lead Wire, 4/0 AWG (805x26) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.099 in (2.5 mm)
• Nom. Insulation Diameter: 0.849 in (21.6 mm)
• Overall Cable Diameter (Nominal): 0.849 in (21.6 mm)

Standards:-

• Operating Temperature Range: -55°C To +150°C
• UL Voltage Rating: 600 V (AWM 3340, AWM 3374)

Applications:-

• Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Specifications:-

• Size (AWG): 4/0
• No. of Conductors: 1
• Stranding: 805x26
• Conductor Material: TC - Tinned Copper
• Part Number: 37140
