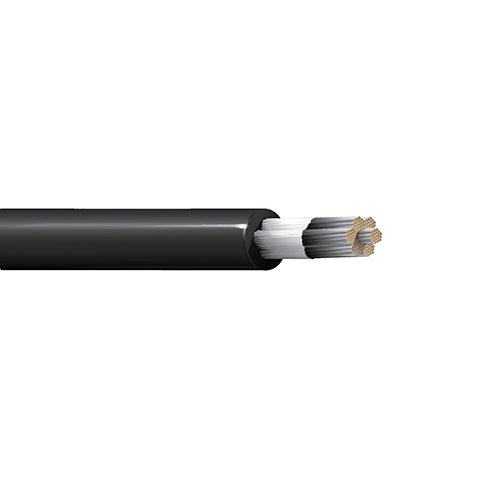

Belden 37130 3/0 AWG 1 Conductor 630x26 Stranding Tinned Copper 600V Rubber Lead Wire

Description:-

Rubber Lead Wire, 3/0 AWG (630x26) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.111 in (2.82 mm)
• Nom. Insulation Diameter: 0.758 in (19.3 mm)
• Overall Cable Diameter (Nominal): 0.758 in (19.3 mm)

Standards:-

• UL Voltage Rating: 600 V (AWM 3340, AWM 3374)

Applications:-

• Class 130(B), 155(F), and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Specifications:-

• Size (AWG): 3/0
• No. of Conductors: 1
• Stranding: 630x26
• Conductor Material: TC - Tinned Copper
• Part Number: 37130
