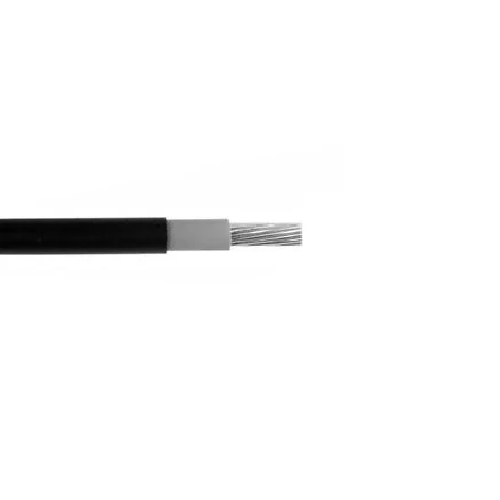

Belden 37118 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 600V Lead Wire

Belden 37118 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 600V Lead Wire

SKU: SKU: NES37118 Download PDF

FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price Now $0.78 /FT
Regular price BEFORE   Sale price Now $0.78 /FT
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 37118 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 600V Lead Wire

Description:

Rubber Lead Wire, 18 AWG (16x30) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Insulation Diameter: 0.141 in (3.58 mm)
• Overall Cable Diameter (Nominal): 0.141 in (3.58 mm)


Standards:

• Operating Temperature: -55°C To +150°C
•
Voltage Rating: 600 V (AWM 3340, AWM 3374)

Applications:

• Class 130(B), 155(F), and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Specifications:

• Size (AWG):
18
• No. of Conductor: 1
• Stranding:
16x30
• Conductor Material: TC - Tinned Copper
• Part Number:
37118
