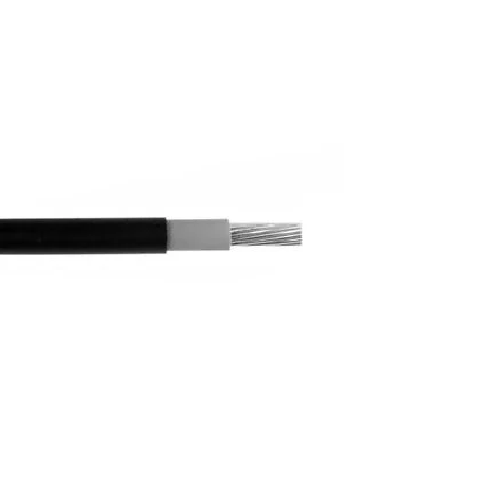

Belden 37116 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Lead Wire

Description:

Rubber Lead Wire, 16 AWG (26x30) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Insulation Diameter: 0.154 in (3.91 mm)
• Overall Cable Diameter (Nominal): 0.154 in (3.91 mm)

Standards:

• UL Temperature: 150°C
• Voltage Rating: 600 V RMS

Applications:

• Class 130(B), 155(F), and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Specifications:

• Size (AWG): 16
• No. of Conductor: 1
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper
• Part Number: 37116
