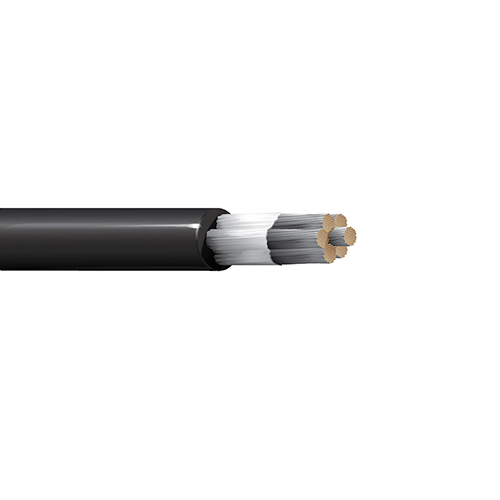

Belden 37102 2 AWG 1 Conductor 163x24 Stranding Tinned Copper 600V Lead Wire

Description:

Rubber Lead Wire, 2 AWG (163x24) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.088 in (2.2 mm)
• Nom. Insulation Diameter: 0.494 in (12.5 mm)
• Overall Cable Diameter (Nominal): 0.494 in (12.5 mm)

Standards:

• Voltage Rating: 600 V (AWM 3340, AWM 3374)
• Operating Temperature: -55°C To +150°C

Applications:

• Class 130(B), 155(F), and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Specifications:

• Size (AWG): 2
• No. of Conductor: 1
• Stranding: 163x24
• Conductor Material: TC - Tinned Copper
• Part Number: 37102
