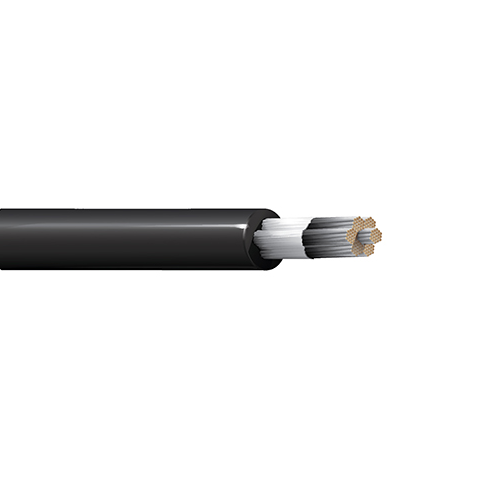

Belden 35410 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Rubber Lead Wire

Belden 35410 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Rubber Lead Wire

SKU: NES35410 Download PDF

gauge:
  • Belden 35410 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Rubber Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.24 /FT
BEFORE   Now $3.24 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 35410 10 AWG 1 Conductor 65x28 Stranding Tinned Copper 600V Rubber Lead Wire

Description:-

Rubber Lead Wire, 10 AWG (65x28) Tinned Copper, XLPO Insulation, AWM 3436 CSA TYPE CL1251 AND AWM 600V 150C.

Insulation:-

• Material: XLP, XLPO, XLPE (Thermoset)
• Nominal Diameter: 0.177 in
• Nominal Wall Thickness: 0.0325 in

Standards:-

• UL Voltage Rating: 600 V

Applications:-

• High temperature, internal wiring of appliances and electronic equipments

Specifications:-

• Size (AWG): 10
• No. of Conductors: 1
• Stranding: 65x28
• Conductor Material: TC - Tinned Copper
• Part Number: 35410
