Belden 33308 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire

Belden 33308 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire

SKU: NES33308 Download PDF

gauge:
  • Belden 33308 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $9.49 /FT
BEFORE   Now $9.49 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 33308 8 AWG 1 Conductor 84x27 Stranding Tinned Copper 600V Low Temp Rubber Lead Wire

Description:-

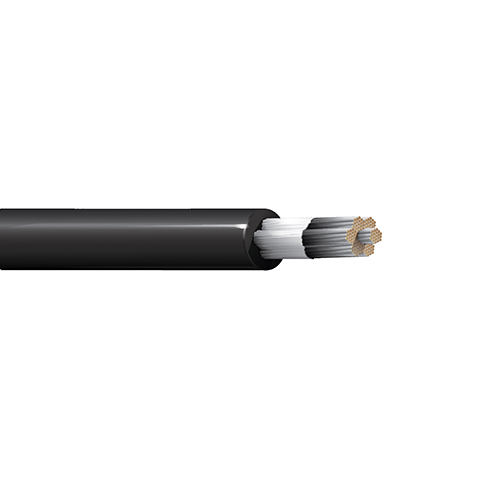

Low Temp Rubber Lead Wire, 8 AWG (84x27) Tinned Copper, Silicone Insulation, AWM 3213 CSA TYPE AWM 600V 150C.

Insulation:-

• Material: Silicone Rubber
• Nominal Wall Thickness: 0.063 in

Standards:-

• UL Voltage Rating: 600 V RMS

Applications:-

• Class 155(F) or Class 180(H) motor lead systems, high temperature applications, internal wiring of lighting fixtures and appliances

Specifications:-

• Size (AWG): 8
• No. of Conductors: 1
• Stranding: 84x27
• Conductor Material: TC - Tinned Copper
• Part Number: 33308
