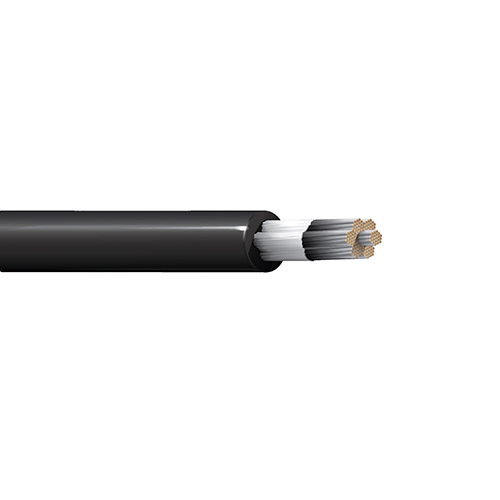

Belden 31520 20 AWG 1 Conductor 10x30 Stranding Tinned Copper 300V Lead Wire

Description:

Low Temp Rubber Lead Wire, 20 AWG (10x30) Tinned Copper, Neoprene Insulation, AWM 3044 CSA TYPE CL902300V 90C.

Insulation:

• Material: Neoprene
• Nominal Wall Thickness: 0.031 in

Standards:

• Voltage Rating: 300 V RMS

Applications:

• internal wiring of appliances, oil resistance applications, motor lead systems

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 10x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31520
