Belden 31518 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire

Belden 31518 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire

SKU: NES31518 Download PDF

gauge:
  • Belden 31518 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.61 /FT
BEFORE   Now $0.61 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

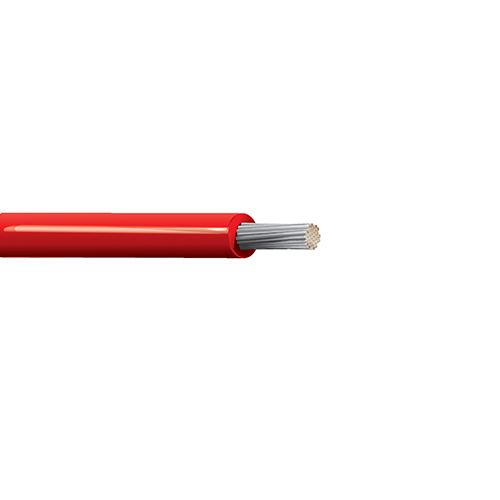

Belden 31518 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire

Description:

Low Temp Rubber Lead Wire, 18 AWG (19x30) Tinned Copper, Neoprene Insulation, AWM 3044 CSA TYPE CL902 300V 90C.

Insulation:

• Material: Neoprene
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)
• Overall Cable Diameter (Nominal): 0.109 in (2.77 mm)

Standards:

• Voltage Rating: 300 V (AWM 3044)
• Operating Temperature: -30°C to +90°C

Applications:

• internal wiring of appliances, oil resistance applications, motor lead systems

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 31518
