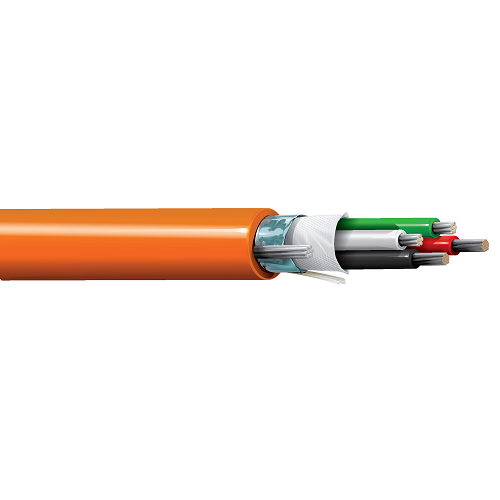

Belden 3126A 22 AWG 2 Conductor 18 AWG 2 Conductor 12 AWG 2 Conductor 300V DeviceBus for Square D/Seriplex Cable

Description:-

DeviceBus for Square D/Seriplex, 3 Pair 12+16+22AWG (65x30+26x30+7x30) Tinned Copper, PVC+PVC+PO Insulation, Overall Beldfoil (Data Pair Only) Shield, PVC Outer Jacket, CM.

Insulation:-

Element: 22 AWG
• Material: PE - Polyethylene
• Nominal Wall Thickness: 0.0405 in

Element: 16 AWG
• Material: PE - Polyethylene
• Nominal Wall Thickness: 0.025 in

Element: 12 AWG
• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.018 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil
• Drainwire Type: 22 AWG (7x30) TC  - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.486 x 0.363 in
• Nominal Wall Thickness: 0.039 in
• Separator Material: PO - Polyolefin (Foam) Tape

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc

Specifications:-

Element: 22 AWG
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper

Element: 16 AWG
• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper

Element: 12 AWG
• Size (AWG): 12
• No. of Conductors: 2
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 3126A
