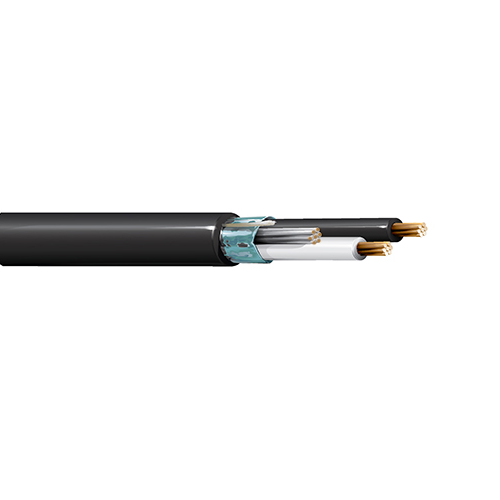

Belden 3088AE 18 AWG 1 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
Belden 3088AE 18 AWG 1 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
SKU: SKU: NES3088AE Download PDF
Select a gauge:
- Belden 3088AE 18 AWG 1 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
- Belden 3088AE 18 AWG 1 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 3088AE 18 AWG 1 Pair 7x26 Stranding Bare Copper 600V Instrumentation Tray Cable
Description:
18 AWG pairs stranded (7x26) bare copper conductors, twisted pairs, PVC/Nylon insulation, overall Beldfoil shield (100% coverage), insulated green ground wire, PVC jacket.
Insulation:
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)
Inner Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.048 in
Standards:
• Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature: -30°C to +90°C Dry, -30°C To +75°C wet
Applications:
• Instrumentation Applications in Plants, TC-ER, Exposed Run Applications
Specifications:
Element: Pair(s)
• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
Element: Ground
• Size (AWG): 18
• No. of Element: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 3088AE
Description:
18 AWG pairs stranded (7x26) bare copper conductors, twisted pairs, PVC/Nylon insulation, overall Beldfoil shield (100% coverage), insulated green ground wire, PVC jacket.
Insulation:
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)
Inner Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.048 in
Standards:
• Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature: -30°C to +90°C Dry, -30°C To +75°C wet
Applications:
• Instrumentation Applications in Plants, TC-ER, Exposed Run Applications
Specifications:
Element: Pair(s)
• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
Element: Ground
• Size (AWG): 18
• No. of Element: 1
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 3088AE
