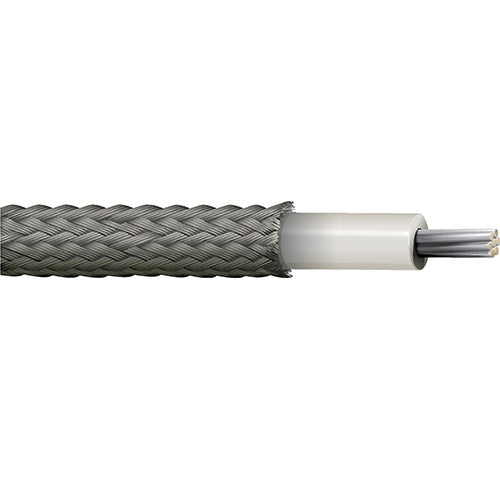

Belden 30816 16 AWG 1 Conductor 26x30 Stranding Tinned Copper 600V Rubber Lead Wire

Description:-

Rubber Lead Wire, 16 AWG (26x30) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3070 CSA SEWF-2 600V 150C.

Insulation:-

• Material: Silicone Rubber
• Nominal Wall Thickness: 0.032 in

Outer Jacket:-

• Material: Lacquered Glass Braid Covering
• Nom. Diameter: 0.143 in

Standards:-

• UL Voltage Rating: 600 V RMS
• Operating Temperature Range: -70°C To +150°C

Applications:-

• Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Specifications:-

• Size (AWG): 16
• No. of Conductors: 1
• Stranding: 26x30
• Conductor Material: TC - Tinned Copper
• Part Number: 30816
